RS REGULATE
AK47/AKM OPTIC MOUNT SYSTEM

617395300532 100011749

Zaktualizowany projekt umożliwia dostosowanie platformy montażowej. Opcja trzech różnych dolnych mocowań, z pełnej długości dolną szyną, przednią szyną i tylną szyną. Umiejscowienie dolnej szyny pozwala na optymalne pozycjonowanie optyki z przodu na tył, jak i z lewej na prawą stronę. Lekka konstrukcja CNC z lotniczego aluminium 6061 T6. Pozycjonowanie optyki w miejscu współwizji. Umożliwia rozebranie karabinu bez demontażu optyki w większości wariantów AK. Przeprojektowany blokujący dźwignię kciukową zamek zachowuje zero nawet po wielokrotnym demontażu i ponownym montażu optyki. Możliwość zablokowania pozycji dla ekstremalnego użytkowania. AKML umożliwia montaż celowników Aimpoint T-1 i H-1 Micro Red Dot. AKOG umożliwia montaż systemów celowniczych Trijicon ACOG

SPECYFIKACJA: Aluminium 6061 T6, matowe wykończenie pokryte Teflonem. Przystosowane do optyki z tubą o średnicy 30mm. Pasuje do karabinków AK i AKM wyposażonych w szynę boczną typu dovetail na korpusie. Baza nie jest dołączona.

Więcej...

Updated design allows for customization of the mounting platform. Option of three different lower mounts, with a full length lower rail, forward rail and rear rail. Placement of lower rail allows for optics to be positioned in the ideal location front to back, as well as right to left. Lightweight CNC machined aircraft grade 6061 T6 aluminum. Position optics in co-witness location. Allows field stripping of the rifle without removal of the optic on most AK variants. Redesigned thumb lever lock retains zero even after repeated optic removal and reinstallation. Ability to stake position for extreme duty. AKML allows the mounting of the Aimpoint T-1 and H-1 Micro Red Dot Optics AKOG allows the mounting of Trijicon ACOG sight systems

SPECS: 6061 T6 aluminum, matte black Teflon coated finish. Accepts optics with 30mm OD tube. Fits AK and AKM rifles equipped with receiver side mount base dovetail. Base not included.

Więcej...

Oceny klientów dla RS REGULATE AKR PICATINNY MOUNT UPPER RAIL

Liczba ocen: 8
Od brownells.com: 8
Średnia ocena: 4,5

Not correct for Zastava N-PAP M70 (24-06-2016)

As far as technicality goes this lower mount section from RS Regulate will actually attach rather securely(but incorrectly) on my 5 month old Yugo / Serbian Zastava N-PAP M70 imported by Century arms.

If you have an Century arms N or O Pap rifle with the top portion of the rifles mounting rail being 1.5 inches longer than the bottom, this Mount will not fit all the way on to the rail it'll be about a quarter of an inch to the rear from full contact for both the upper and lower sections of this mount. The only fixes for that are to remove a small section of the top rail attached to your Ak or cutting into your new lower mount to allow for further forward travel.

fits great (24-12-2016)

This rail fits my m&m 10 like a glove it is well thought out

Very clever design (05-07-2016)

Itâs really hard to review just one part as these are designed to be a two piece system, so Iâll include both here and post them at both the lower rail and upper rail reviews. I put these on a new Arsenal SAM7SF. Both rails are surprisingly light. Putting it on at first was a little tight as the Arsenal has a sling swivel right in the way so you have to turn it just right to get the lower rail to slide on. It was loose after it finally slid on, so following directions; I removed it and tried to adjust it. The spring loaded floating anchor was really stiff. The adjustment nut fits into a hex recess on the floating anchor. I found the best way to depress the anchor to allow adjustment was to use a 5/16â nut driver to get it moving. Once it moves, hold it down with a finger and use the nut driver to adjust as necessary. Turn clockwise to tighten the attachment and reverse to loosen. Make sure the adjustment nut goes back into the hex recess under spring pressure when you are finished. Got that adjusted and the lower rail locked up tight.

Next the upper rail is attached in a convenient position on the lower rail. The upper rail can move laterally in its slots which allow the mount to be positioned exactly over the bore. Call it a gross windage adjustment. I measured the clearance between the bottom of the upper rail and the rifleâs rear cover to be .118â. Four 8-32 socket head screws are furnished to secure it. I suggest using just two until everything is where you want it. The rifle can be shot with just two screws to make sure it is centered. Once you are happy with the position, you can install the other two screws and Loctite them if you want.

The upper rail also comes with two roll pins which are used to âstakeâ the mount for âextreme dutyâ. To do that you have to drill two .125â holes in the lower rail aligned with the âstakingâ holes. Of course that is not really staking like on a 1911 grip bushing, but I digress. Once you drill those holes, you are stuck with the position of the upper rails as it would be pretty tough to get the roll pins out as they would be going into a blind hole unless you drill those .125â holes all the way through. My opinion is if the unit is ever subjected to such a load that the screws wonât hold, it will likely be destroyed whether or not there are roll pins in place.

Overall the quality and finish is great. I had no problem getting the upper rail to be centered over the barrel. The Picatinny style rings I used fit just fine with a tight lock up. The AK is not a tack drive but I expect that it will make my late 60âs eyes shoot a bunch better with a low power scope rather that those tiny irons.

Solid, but offers no options (20-04-2018)

This is a solid mount and the whole RS system in general is just phenomenal, however, you can really only use it with an Aimpoint PRO. I tried to mount a Holosun HS406A1, and was disappointed to see that the mount is so low profile that it would not clear the dust cover on my Arsenal AK. After removing the dust cover just for reference, I found that the mount only allowed about 1/10 of a millimeter between the bolt and the optic. Use with Aimpoint and similar clones only, for it will not work with any 30 mm red dot.

<img width="500" src='/userdocs/reviewimages/8f792e8d-1f56-4093-8b8c-f2032b6ce983.jpg' alt=''>

Very clever design (05-07-2016)

Works great with my RAS47 (12-08-2016)

When you open the box the quality of this rail is readily apparent.

The hex screw is extremely to adjust, one or two small adjustment had the rail sliding easily on and locking positively in place.

Don't forget, you need to purchase an upper to complete the system. I purchased the AKR upper for maximum flexibility for use with multiple sights.

Exceptional (21-09-2016)

The fit, finish and quality is exceptional. The scope mount fits very closely to the top of the dust cover and the side of the receiver

As the previous review mentions, you will need to purchase the upper half, which is sold seperately.

It is almost too nice to mount on my rifle.

Very happy with this purchase.

rock-solid (01-02-2018)

This thing is light-weight, rock-solid and super-adjustable, to compensate for the AKM's lack of milspec-ness. Mounted a Vortex Diamondback 4x12 on my RAS-47 and have shot it repeatedly at 100, 200, 300m (yeah, all the armchair experts gonna hate on the RAS, but it has a great barrel and printed 7" groups at 300m). I obviously used loc-tite when I put the top rail on. Holds zero, and doesn't even lose zero when I use cantilever function to pop it off and put it back on. My friend was super impressed and bought one and is equally happy. Going to put one on my Saiga 74. They are expensive, but worth it.

Zobacz 8 dodatkowych opinii na brownells.com

559 989 9 PLN

Nr produktu: 100011749

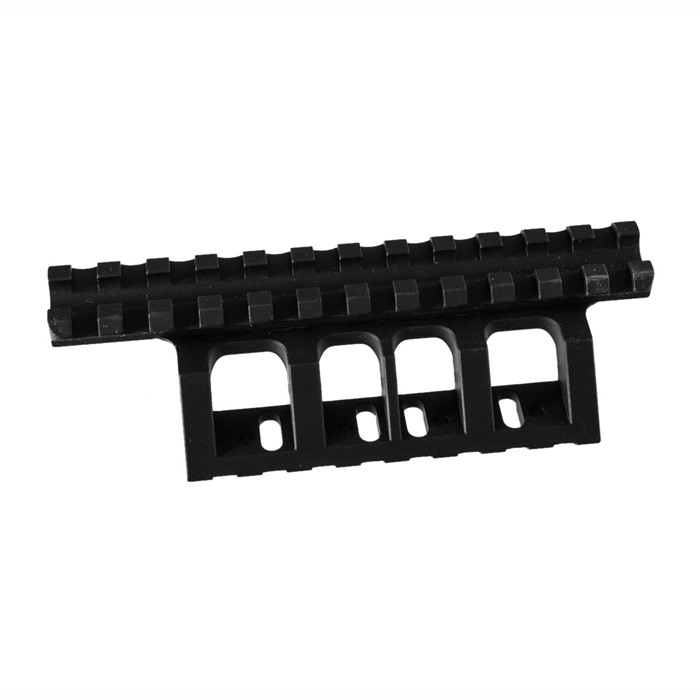

RS REGULATE AKR PICATINNY MOUNT UPPER RAIL
Numer części: AKR 617395300532 Zaktualizowany projekt umożliwia dostosowanie platformy montażowej. Opcja trzech różnych dolnych mocowań, z pełnej długości dolną szyną, przednią szyną i tylną szyną. Umiejscowienie dolnej szyny pozwala na optymalne pozycjonowanie optyki z przodu na tył, jak i z lewej na prawą stronę. Lekka konstrukcja CNC z lotniczego aluminium 6061 T6. Pozycjonowanie optyki w miejscu współwizji. Umożliwia rozebranie karabinu bez demontażu optyki w większości wariantów AK. Przeprojektowany blokujący dźwignię kciukową zamek zachowuje zero nawet po wielokrotnym demontażu i ponownym montażu optyki. Możliwość zablokowania pozycji dla ekstremalnego użytkowania. AKML umożliwia montaż celowników Aimpoint T-1 i H-1 Micro Red Dot. AKOG umożliwia montaż systemów celowniczych Trijicon ACOG

659 PLN 29 659,00 zł *

Czas dostawy ok. 14-21 dni.
Ponad 10 sztuk w magazynie w USA

Specyfikacja: Color: Black Make: AK-47 Material: Aluminum Number of Bases: 1-Piece Style: Weaver-Style Bases, Quick Detach, Picatinny

RS REGULATE AK47/AKM OPTIC MOUNT SYSTEM
