Wniosek patentowy Arisaka Offset Optic Mount to modułowe rozwiązanie montażowe, które pozwala użytkownikowi na wybór pozycji offsetowej pod kątem 35 lub 45 stopni dla celownika red dot bez potrzeby dodatkowych komponentów. Pozycja 35 stopni zbliża celownik red dot do smuklejszych, mniejszych lunet, podczas gdy pozycja 45 stopni zapewnia dodatkowy luz wokół szerszych wieżyczek lub większych, o wyższej powiększeniu lunet. Arisaka Offset Optic Mount zaprojektowano do montażu na górnej szynie Picatinny karabinu AR15. Gdy karabin jest przechylony, aby skorzystać z offsetowego celownika red dot, optyka pozostaje wycentrowana nad otworem i utrzymuje niższą wysokość współpracy 1/3. Podstawa i płyty optyczne mogą być odwracane, co pozwala na użycie z lewej lub prawej strony. Podstawę i płyty można nabyć osobno lub jako zestaw, co zapewnia możliwość rozbudowy w przyszłości, gdy użytkownicy zdobędą nowe celowniki red dot. Waga: 1,9 oz bez optyki. Długość: 1,0" dla podstawy, która zajmuje trzy sloty Picatinny (podwójne zaczepy odrzutu i śruba mocująca). Wysokość: Podstawa znajduje się 0,180" nad powierzchnią szyny Picatinny. Montaż jest frezowany CNC z aluminium 6061-T6 i anodowany w twardej powłoce MIL-A-8625 Typ III. W zestawie znajduje się wkrętak Torx Plus IP20 i IP27 do każdej podstawy. Standardowa wysokość (dla montażu lunet 1,5" do 1,8"): Płyta 1: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III Płyta 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice Płyta 4: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero Płyta 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (nie 5X), Holosun HS403 (nie A), HS503, HS515, HS530 Płyta 6: Aimpoint Acro Wysokość wysoka (1,9" do 2,2" montażu lunet): Płyta 7: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III Płyta 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T Płyta 10: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero Płyta 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (nie 5X), Holosun HS403 (nie A), HS503, HS515, HS530 Płyta 12: Aimpoint Acro

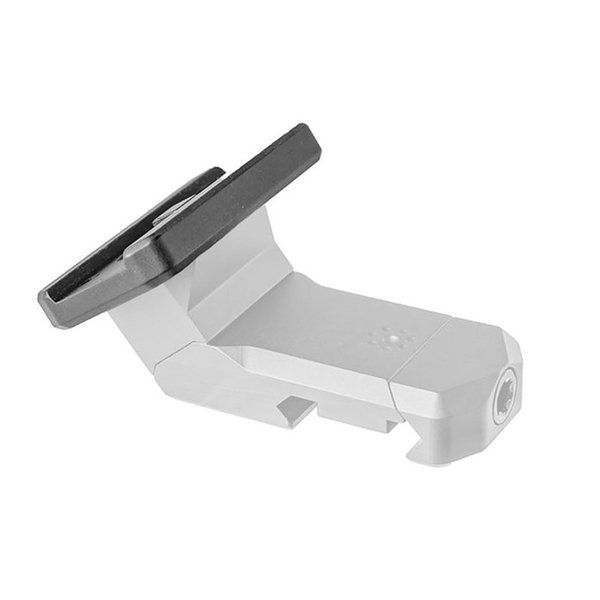

The Patent Pending Arisaka Offset Optic Mount is a modular mounting solution that allows the user to select a 35 or 45 degree offset position for a red dot sight without requiring additional components. The 35 degree position brings the red dot sight up closer to slimmer, smaller scopes, while the 45 degree position provides additional clearance around wider turrets or larger, higher magnification scopes. The Arisaka Offset Optic Mount is designed to be attached to the top Picatinny rail of an AR15 rifle. When the rifle is canted to make use of the offset red dot sight, the optic remains centered over the bore and maintains a lower 1/3 co-witness height. The base and optic plates can be reversed, allowing for use on the left or right side. The base and plates can each be purchased separately or as a combination, providing an upgrade path in the future as users acquire new red dot sights. Weight: 1.9 oz without optic. Length: 1.0" for the base, which occupies three Picatinny slots (twin recoil lugs and clamping screw). Height: The base sits 0.180" above the surface of the Picatinny rail. The mount is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. IP20 and IP27 Torx Plus bit drivers are included with each base. Standard height (for 1.5" to 1.8" scope mounts): Plate 1: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III Plate 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T, Swampfox Kingslayer, Liberty, Justice Plate 4: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero Plate 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530 Plate 6: Aimpoint Acro Tall height (1.9" to 2.2" scope mounts): Plate 7: Docter, Eotech MRDS, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III Plate 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T Plate 10: Leupold Delta Point Pro, JPoint, Shield RMS, RMSc, Swampfox Sentinel, SIG Romeo Zero Plate 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530 Plate 12: Aimpoint Acro
