Tuleje ze stali poddawanej obróbce cieplnej. Średnice dopasowujące są ręcznie polerowane z twardością powierzchni Rc 60-62, aby zredukować wysiłek dopasowywania. Tuleje są dostępne w zakresie od .185" do .368" w przyrostach .001". Ostatnie trzy cyfry części (#RD73XXX) oznaczają rozmiar tulei. Zobacz inne rozmiary: .185" do .250" .251" do .305" .306 do .368"
Określenie rozmiaru tulei Redding
Odpowiedni rozmiar tulei można łatwo określić, mierząc zewnętrzną średnicę szyjki załadowanych nabojów za pomocą precyzyjnego mikrometru lub suwmiarki. Następnie wystarczy odjąć .001" od naboju, który miał najmniejszą średnią średnicę szyjki. Ta średnica tulei zazwyczaj wystarczająco dopasowuje szyjki łuski, aby uzyskać odpowiednie dopasowanie dla pocisku.
Jeśli używasz die typu “S” i nie obrabiasz zewnętrznej części szyjek łusek, sugerujemy użycie tulei .002" mniejszej niż najmniejsza średnia średnica szyjki, oraz użycie kulki rozszerzającej dołączonej do twojego die typu “S”. Ta tuleja nadal zapewni minimalne dopasowanie (maksymalizując żywotność twojego mosiądzu), a kulka rozszerzająca zapewni, że każdy nabój będzie miał takie samo trzymanie pocisku.
Redding odkrył, że gdy masz łuski z cienkimi ściankami szyjki w dolnej granicy tolerancji SAAMI, twoja wypalona łuska będzie mierzyć znacznie więcej (.006" do .010" więcej) niż załadowane naboje. W takich okolicznościach testy Reddinga wykazały, że tuleja .001" większa (niż załadowany nabój) może dać pożądane trzymanie pocisku.

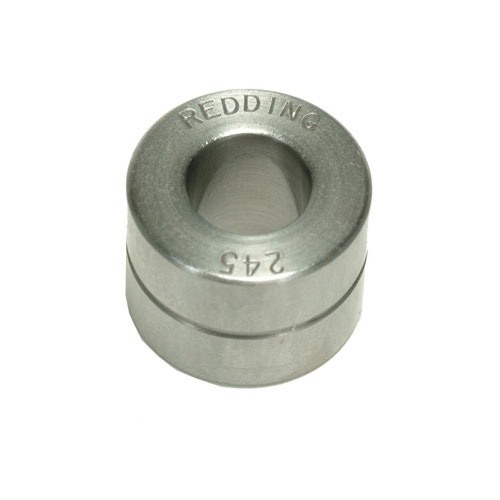

Heat treated steel bushings. The sizing diameters are hand polished with a surface hardness of Rc 60-62 to reduce sizing effort. Bushings are available throughout the range of .185" thru .368" in .001" increments. The last three digits of the part (#RD73XXX) denotes bushing size. View other sizes: .185" to .250" .251" to .305" .306 to .368"
Determining Redding Bushing Size
The proper bushing size can be easily determined by measuring the outside neck diameter of your loaded cartridges with a precision micrometer or a dial caliper. Then, simply subtract .001" from the cartridge that had the smallest average neck diameter. This diameter bushing will generally size case necks just enough to create the proper press fit for the bullet.
If you are using a Type “S” style die and not turning the outside of your case necks, we suggest using a bushing .002" smaller than your smallest average neck diameter, and using the expander ball included with your Type “S” die. This size bushing will still give you minimal sizing (maximizing the life of your brass) and the expander ball will insure that each cartridge has the same bullet grip.
Redding has found that when you have cases with neck wall thicknesses on the thin side of the SAAMI tolerance, your fired case will measure considerably larger (.006" to .010" larger) than your loaded rounds. In these circumstances, Redding’s tests have shown that a bushing .001" larger (than the loaded round) may give you the desired bullet grip.
